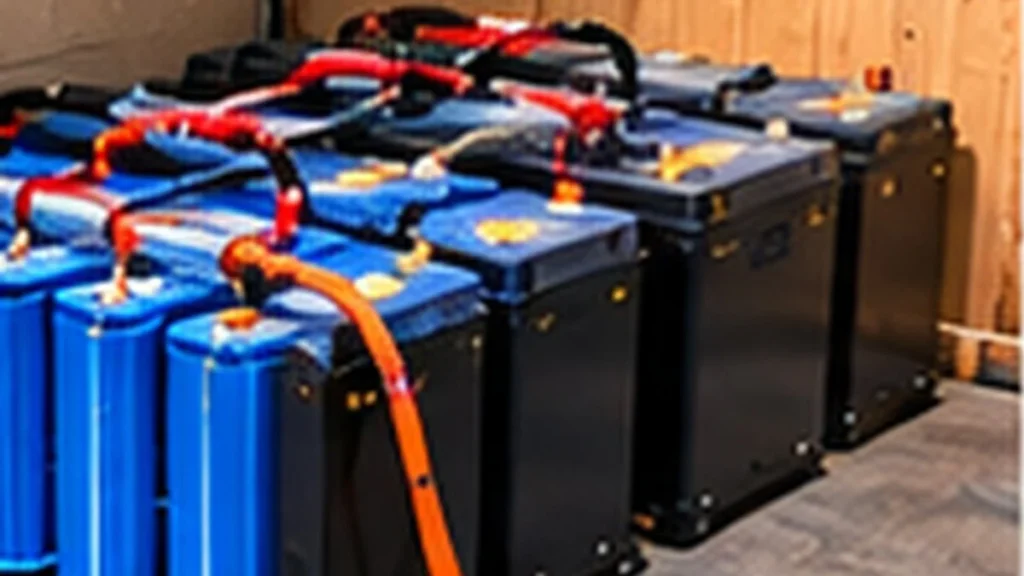

Can You Mix Old and New Batteries in a Solar Bank?

Generally, no. Avoid mixing old and new batteries. This lowers new lead-acid batteries to the old ones’ level. It also shortens their life. However, you can often add a new LiFePO4 battery in parallel. First, balance it with a healthy bank of the same model. But, avoid adding batteries in series with older ones. Also, do not mix brands and capacities.

The problem with mixing old and new batteries

Batteries in a bank share charging and discharging. If one is weaker (lower capacity or higher internal resistance):

• In series: the weak battery empties first and is driven too low, while also reaching full first and being overcharged. It deteriorates rapidly.
• In parallel: batteries with different internal resistance share current unequally. As a result, the stronger battery works harder. It also cycles deeper.

Lead-acid rules

• Rule of thumb: don’t add new batteries to a bank more than about 6 months to a year old.
• Never mix flooded, AGM and gel in one bank; they need different charge voltages.
• If one battery in an old bank fails, you should usually replace the whole bank. Or, you can temporarily run a smaller bank. Use the remaining good batteries.

LiFePO4 rules

• Parallel expansion: usually OK with the same brand and model, as long as the existing batteries are healthy. Fully charge each battery separately and connect them at the same voltage.
• Series: Use batteries of the same model, capacity, and age. Also, ensure they have the same state of charge. Only do this if the maker allows series operation.
• Mixed capacities in parallel can technically work. For example, you can mix 100 Ah and 200 Ah batteries of the same chemistry and voltage. However, each battery should have its own fuse and cables of matched resistance. The manufacturer should also approve this setup.
• 48 V rack batteries are designed for parallel expansion. They use communication links. Therefore, you should follow the manufacturer’s procedure.

Better ways to expand

1. Plan the bank size upfront using the battery sizing formula.
2. Add a second, separate bank with its own charging, switched in for specific loads.
3. Move to a rack system designed for adding modules.
4. Replace the whole lead-acid bank with lithium when it reaches end of life.

Checking battery health before mixing

• Capacity test: discharge at a known load and measure delivered amp-hours.
• Resting voltage and internal resistance: large differences indicate mismatch.
• Battery monitor history: shrinking amp-hours to full or empty points to age.

See how long do solar batteries last.

Worked example: what happens in a mixed series string

A 24 V bank uses two 12 V 100 Ah AGM batteries in series. One is new (100 Ah); the other is three years old and now holds about 70 Ah.

• During discharge, the old battery reaches 50% after 35 Ah while the new one is still at 65%. If you keep using 50 Ah, the old battery goes to about 29%, a damaging depth for lead-acid.
• During charging, the old battery reaches full first. Then it is overcharged while the new one finishes.

Within months, the new battery’s life also shortens. You can fix this by replacing both batteries together. Alternatively, you can temporarily run a smaller bank.

A safe expansion procedure for LiFePO4 (parallel)

1. First, confirm the new battery is the same model and voltage. Also, ensure the maker allows parallel use.
2. Fully charge the existing bank and the new battery separately.
3. Check both rest at nearly the same voltage (within about 0.05 V on a 12 V battery).
4. Connect through a busbar with equal-length cables and an individual fuse per battery.
5. Watch the batteries’ apps or monitor during the first few cycles to confirm they share current.

Decision guide: expand, replace or run two banks?

Your situation	Best option
Lead-acid bank under 6 months old, same model available	Adding is acceptable if you balance carefully
Lead-acid bank over a year old	Replace the whole bank, or run the old one until it fails and then replace
LiFePO4 bank, same model available, healthy	Add in parallel after balancing
LiFePO4 bank, different brand only available	Ask the manufacturer; or build a second bank with its own charging
Want much more capacity	Move to a modular 48 V rack system

Worked example: running two separate banks

A cabin has an old 12 V AGM bank (about 150 Ah usable) and buys a new 12 V 200 Ah LiFePO4. Instead of mixing:

• The new lithium bank powers the inverter and main loads, charged by the main MPPT controller.
• The old AGM bank powers only DC lighting and the water pump, charged by a small separate controller and panel.

Each bank gets the right charge profile and neither damages the other. When the AGM bank fails, its loads move to the lithium bank.

Testing an old battery before reusing it

1. Fully charge it and let it rest for 12 hours.
2. Check resting voltage (lead-acid about 12.7 V when healthy).
3. Discharge at a known load (for example 10 A) and time how long until 50% (lead-acid) or BMS cutoff (lithium).
4. Compare delivered Ah with the rating. Below about 70% means it is near end of life.

Common mistakes

• Adding a new battery to “fix” a weak bank. The weak batteries remain weak.
• Paralleling batteries at different voltages, causing a large inrush current between them.
• Skipping individual fuses on parallel batteries.

FAQ

Can I add a new 100 Ah lithium battery to a one-year-old one?

Usually yes in parallel, if it is the same model and both are healthy. Balance them at full charge before connecting.

Can I mix lithium and lead-acid batteries?

Do not put them in the same bank. They need different charge voltages. Also, they behave differently under load.

What happens if I mix old and new lead-acid batteries?

The new batteries age quickly. They will match the old ones. As a result, you lose much of their value.

Can I add a battery to my solar system later?

Yes, best within the first few months for lead-acid, or anytime for matched lithium batteries following the maker’s procedure.

Can I mix 12 V 100 Ah and 12 V 200 Ah lithium batteries?

Some manufacturers allow this; however, others do not. Get approval first. Also, use separate fuses and matched-resistance cabling.
